Let's look a little more closely at some of the things these tree structures an do for us.

# Binary Search Trees

- Lets look at trees that are (1) binary and (2) ordered.
- We will use these trees to store some values (in a computer's memory, I assume).
- Each vertex will contain one of whatever data we're storing.
- I'm assuming we're organizing our data by one value: its key.
- The keys must be totally-ordered.
- Let's assume all the keys are distinct for simplicity.
- The key might be something like a student number or name: the thing we want to search by.

- That is, it will look like this:
typedef struct bst_node { struct bst_node *leftchild; struct bst_node *rightchild; char *key; char *otherdata; } bst_node;

- We'll make a few rules about how we arrange the values in the tree:
- The keys in the left subtree must be less than the key of the root.
- The keys in the right subtree must be greater than the key of the root.
- Those must also be true for each subtree.

- A tree like this is called a binary search tree or BST.
- For example, this is a binary search tree containing some words (ordered by dictionary ordering):
- This is another BST containing the same values:
- We haven't made any assertions about the BST being balanced or full.

- It is fairly straightforward to insert a new value into a BST and maintain the rules of the tree.
- The idea: look at the keys to decide if we go to the left or right.
- If the child spot is free, put it there.
- If not, recurse down the tree.

procedure bst_insert(bst_root, newnode) if newnode.key < bst_root.key // insert on the left if bst_root.leftchild = null bst_root.leftchild = newnode else bst_insert(bst_root.leftchild, newnode) else // insert on the right if bst_root.rightchild = null bst_root.leftchild = newnode else bst_insert(bst_root.rightchild, newnode)

- For example, if we start with the first BST above:
- … and insert “eggplant”, then we call the function with the root of the tree and…
- “eggplant” > “date”, and the right child is non-null. Recurse on the right child, “grape”.
- “eggplant” < “grape”, and the left child is non-null. Recurse on the left child, “fig”.
- “eggplant” < “fig”, but the right child is null. Insert the new node as the right child.

- After that, we get this:
- Still a BST.
- Still balanced, but that's not always going to be true.
- If we now insert “elderberry”, it will be unbalanced

- The running time of the insertion?
- We do constant work and recurse (at most) once per level of the tree.
- Running time is \(O(h)\).
- So, it would be nice to keep \(h\) under control.

- We know that if we have a binary tree with \(n\) vertices that is full and balanced, it has height of \(\Theta(\log_2 n)\).
- But that insertion algorithm doesn't get us balanced trees.

- For example, if we start with an empty tree and insert the values in-order, we build the trees like this:
- Those are as unbalanced as they can be: \(h=n\).
- So, further insertions take a long time.
- Any other algorithms that traverse the height of the tree will be slow too.

- One solution that will probably work: insert the values in a random order.
- For example, I randomly permuted the words and got: date, fig, apple, grape, banana, eggplant, cherry, honeydew.
- Inserting in that order gives us this tree:
- \(h=3\) is pretty good.
- Of course, we could have been unlucky and got a large \(h\).
- But for large \(n\), the probability of getting a really-unbalanced tree is quite small.

- Once we have a BST, we can search for values in the collection easily:
procedure bst_search(bst_root, key) if bst_root = null // it's not there return null else if key = bst_root.key // found it return bst_root else if key < bst_root.key // look on the left return bst_search(bst_root.leftchild, key) else // look on the right return bst_search(bst_root.rightchild, key)

- Like insertion, running time is \(O(h)\) for the search.
- It's looking even more important that we keep \(h\) as close to \(\log_2 n\) as we can.

- Another solution to imbalanced trees: be more clever in the insertion and re-balance the tree if it gets too out-of-balance.
- But that's tricky.

- If we have a badly-balanced BST, we can do something to re-balance.
- We can “pivot” around an edge to make one side higher/shorter than it was:
- There, \(A,B,C\) represent subtrees.
- Both before and after, the tree represents values with \(A<1<B<2<C\).
- So, if it was a BST before, it will be after.
- If \(A\) was too short or \(C\) too tall on the left, they will be better on the right.

- The problem is that we might have to do a lot of these to get the BST back in-balance.
- … making insertion slow because of the maintenance work.
- How to overcome that is a problem for another course.

- But if we do keep our tree mostly-balanced (\(h=O(\log n)\)) then we can search in \(\log n\) time.
- As long as we don't take too long to insert, it starts to sound better than a sorted list.
- In a sorted list, we can search in \(O(\log n)\) (binary search) but insertion takes \(O(n)\) since we have to make space in the array.

- Remember the problem you're trying to solve with data structures like this: we want to store some values so that we can quickly…
- insert a new value into the collection;
- look up a value by its key (and get the other data in the structure);
- delete values from the collection.

- A sorted list is fast at 2, but slow at 1 and 3.
- The BST is usually fast at all three, but slow at all three if the tree is unbalanced.
- A balanced BST can be fast at all three, but we have to be clever about exactly how to do 1 and 3.

# Decision Trees

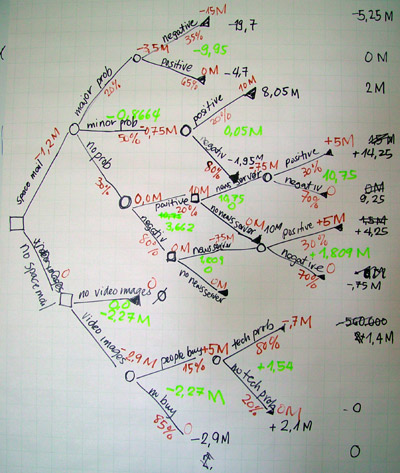

- We can use a rooted tree to represent a decision-making process.
- In a decision-making process we basically have decisions to make based on evidence
- … and things that might occur randomly
- … and conclusions to reach.
- It is convention to draw these in each in a separate shape of node.

- But making business decisions isn't very interesting (to me).
- A decision tree can also represent a series of steps taken by an algorithm.
- Each decision is the result of some kind of branch in the algorithm: probably an if/else statement.
- We can look at the various decisions that might be made as part of analyzing the algorithm.

- The most common application of this is sorting algorithms.
- We usually counted the running time by looking at the number of decisions made, anyway.
- … since the innermost if/else statement was the thing that ran the most often.
- So, if we can learn something about these trees that sort a list, we'll learn something about all possible (comparison-based) sorting algorithms.

- Suppose we're sorting three items (\(a,b,c\)) by comparing them.
- We might start by comparing \(a\) and \(b\).
- If we find out that \(a<b\), then we might move some elements around in the list and then check how \(b\) and \(c\) compare.
- … and so on until we have learned enough to put things in order.
- Our decision tree might look like this:

- There are other decision trees for sorting three elements: the details of the algorithm will decide what it looks like.
- We might end up comparing the same elements more than once.
- Or, compare elements unnecessarily (e.g. we learn that \(a<b\) and \(b<c\) but then compare \(a\) and \(c\).)
- But, we accept these things so we get an easy-to-write algorithm.

- The worst-case running time of the algorithm is the height of the tree.
- If the sorting algorithm is correct, it must have at least \(n!\) leaves.
- … since there are \(n!\) possible orderings of the elements.

- So, what kind of binary trees contain \(n!\) leaves?
- Its height must be at least \(\lceil\log_2 n!\rceil\).
- \(\lceil\log_2 n!\rceil\) is \(\Theta(n\log n)\).
- Every comparison-based sorting algorithm has worst-case running time \(\Omega(n\log n)\).

- We have a comparison-based sorting algorithm that has worst-case running time \(\Theta(n\log n)\): Mergesort.
- So any other sorting algorithm we find will only be better in constant factor, not growth rate.

- Why “comparison-based” sorting?
- Can we sort without comparisons?
- In general, no: \(\Theta(n\log n)\) is the best we can do.
- But if we restrict our input somehow, we can manage. (e.g. we only have integers 1–10.)
- See radix sort, counting sort, bucket sort.
